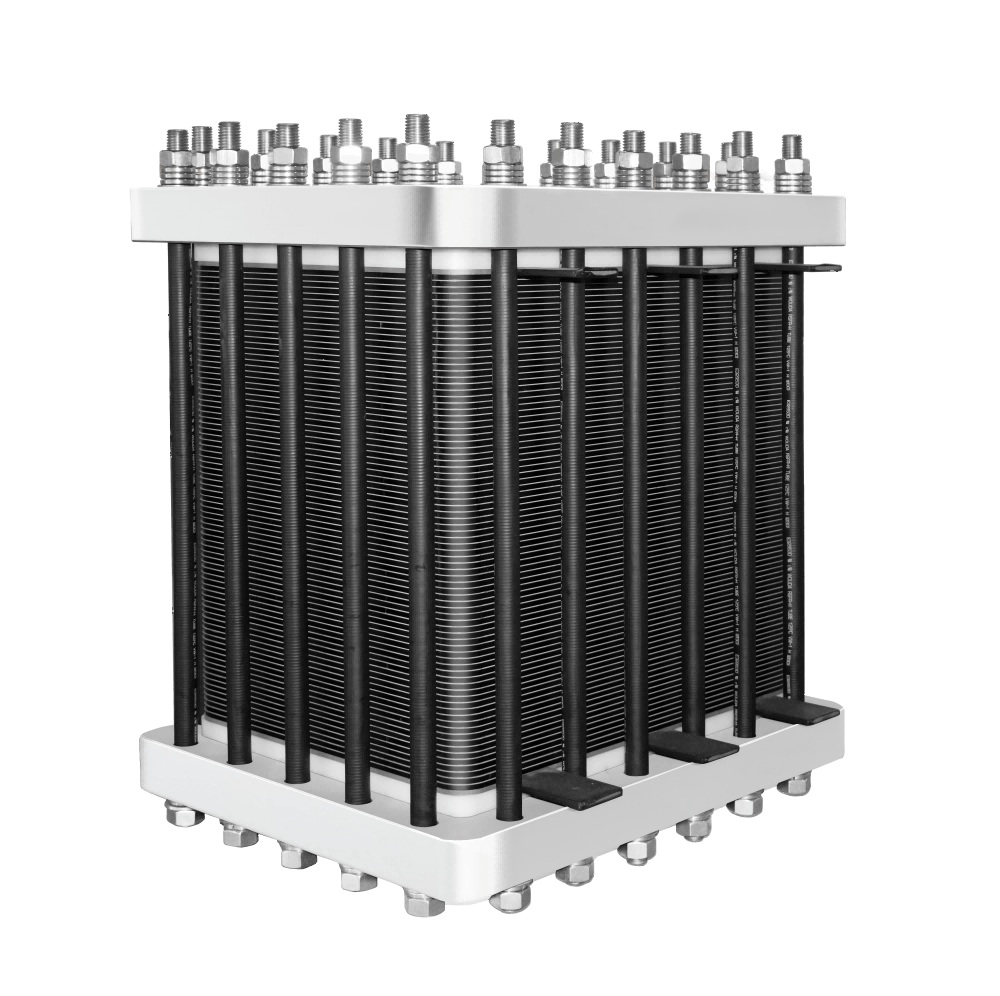

CH-60Nm³/h type PEME
PEME Water Electrolyic Cell CH-60Nm³/h
Next-Gen Hydrogen Solutions for Industrial Applications
Hele Titanium’s CH-60Nm³/h PEM electrolyzer delivers industrial-scale hydrogen production through advanced proton exchange membrane technology. Engineered for energy companies and chemical manufacturers, our system produces 60 Nm³/h of 99.99% pure hydrogen with rapid response times (<30s) and compact footprint (0.97×0.9×0.85m).
Pem Water Electrolyic Cell 60Nm³/h
| CH-60Nm³/h type PEME | |||
| Parameter | Unit | Value | Notes |
|---|---|---|---|
| Oxygen production | Nm³/h | 90 | Hydrogen is mixed with oxygen |
| Hydrogen production | Nm³/h | 60 | Pure hydrogen, single out |
| Temperature of circulating water | ℃ | 25-70 | |
| Water consumption | L/h | 60 | Pure Water, deionized water |
| Circular manner | / | Pump circulation | |
| Hydrogen purity | % | 99.99 | After drying |
| Water electrolysis method | / | Water electrolysis | Proton exchange membrane electrolysis |
| Maximum stress | Mpa | 3.5 | |
| Anode water TDS | PPM | ≤1 | Pure water system |
| Cathode water TDS | PPM | ||
| Constant current | A | 4000-4500 | |
| Dimensions (without lugs) | mm | 970×805×855 | |
| Dimensions (including lugs and fittings) | mm | 970×905×855 | |
| Weight | kg | / | |
| Application area | On-site hydrogen production in large scale energy storage, chemical industry, fuel cell system, hydrogen production-hydrogenation station, medicine and other industries | ||
Industrial-Grade PEM Electrolyzer CH-60Nm³/h | High-Purity Hydrogen Production Systems
High-Efficiency, High-Purity Hydrogen Production
The CH-60Nm³/h PEM electrolyzer from Hele Titanium is engineered for industrial clients seeking reliable, scalable, and sustainable hydrogen solutions. Utilizing cutting-edge proton exchange membrane (PEM) technology and corrosion-resistant titanium anodes, this system delivers 60 Nm³/h of ultra-pure (99.99%) hydrogen and 90 Nm³/h of oxygen, supporting a wide range of applications from energy storage to chemical manufacturing.
Key Features & Competitive Advantages
Industrial-Scale Output
Generate 60 Nm³/h of high-purity hydrogen to meet the demands of large-scale operations, including hydrogen refueling stations, chemical plants, and renewable energy storage.Superior Purity and Safety
Achieve 99.99% hydrogen purity after integrated drying, ensuring compatibility with sensitive applications such as fuel cells and pharmaceuticals.Robust & Reliable Design
Built with premium titanium alloy components, the electrolyzer withstands harsh environments and operates at pressures up to 3.5 MPa, ensuring long-term durability and low maintenance.Efficient Resource Management
Consumes just 60 L/h of deionized water (≤1 ppm TDS), with automated pump circulation and thermal management for optimal efficiency.Rapid Response & Easy Integration
Instant load response and compatibility with 4,000–4,500A constant current make this system ideal for integration with renewable energy sources like solar and wind.Compact Footprint
Space-saving design (970×905×855 mm) allows for flexible installation in diverse industrial environments.
Designed for Your Industry
The Hele Titanium CH-60Nm³/h PEM electrolyzer is the preferred choice for:
Hydrogen refueling stations
Grid-scale and renewable energy storage
Chemical and pharmaceutical manufacturing
Semiconductor production
On-site hydrogen supply for industrial processes.
Why Choose Hele Titanium?
Proven expertise in PEM electrolyzer technology and titanium anode design
Focused on delivering reliable, high-performance hydrogen solutions for B2B clients
Dedicated support for custom integration and after-sales service
Empower your business with a cleaner, more efficient hydrogen supply. Contact Hele Titanium today to discover how the CH-60Nm³/h PEM electrolyzer can drive your operations forward.
Hele Titanium Hydrogen Company Profile
Expertise:
Hele Titanium Hydrogen is a leading PEM electrolyzer manufacturer in China, boasting over a decade of specialized experience in designing and producing advanced PEM electrolyzers tailored to meet the unique demands of diverse industries.
Service Scope:
The company offers end-to-end services, from design to large-scale production, ensuring clients receive high-quality, high-performance PEM electrolyzers that support their transition to sustainable energy solutions.
Customization Services:
Hele Titanium Hydrogen provides bespoke solutions, enabling adjustments to electrolyzer stack dimensions and capacity, optimization of operational parameters, selection of appropriate electrode materials and components, configuration of efficient cell structures, and additional system customization options to align with specific client requirements.
PEM Electrolyzer Product Overview
Capacity Range:
The company offers PEM electrolyzers in various capacities, including 0.01-1Nm³/h, 1-10Nm³/h, 10-50Nm³/h, 50-200Nm³/h, as well as compact models (2000-7000ml/min and 300-2000ml/min), catering to applications spanning small-scale laboratories to large industrial operations.
Applications:
These electrolyzers are widely deployed across sectors such as fuel cells, multi-energy hybrid microgrids, power plants, semiconductor manufacturing, hydrogen refueling stations, polysilicon production, chemical industries, optoelectronics, energy storage facilities, power absorption systems, and renewable hydrogen production.
PEM Electrolyzer Operating Principle & Advantages
Operating Principle:
PEM electrolyzers generate hydrogen and oxygen through water electrolysis. At the anode, an oxidation reaction produces oxygen, protons, and electrons; protons migrate via the proton exchange membrane to the cathode, where they combine with electrons to form hydrogen gas.
Advantages:
PEM electrolyzers excel in producing ultra-pure hydrogen, operating with high efficiency, and offering rapid response times. They are ideally suited for integration with renewable energy sources (e.g., wind, solar), advancing global decarbonization efforts and enabling the transition to a low-carbon future.
Key Considerations for Selecting PEM Electrolyzers
Hydrogen Production Requirements:
Define required hydrogen volume, purity, and pressure to select the appropriate electrolyzer model.Input Power Specifications:
Evaluate current and voltage requirements to ensure alignment with production scale and application needs.System Design & Configuration:
Assess critical components (e.g., proton exchange membrane, gas diffusion layer, catalyst layer) to guarantee system efficiency and durability.Manufacturer Reputation:
Partner with reputable manufacturers delivering reliable, high-quality electrolyzers and comprehensive after-sales support.Customization Options:
Inquire about tailor-made solutions to address specific operational demands.
Hele Titanium Hydrogen’s Commitment & Strengths
One-Stop Solutions:
Beyond premium PEM electrolyzers, Hele Titanium Hydrogen provides detailed product proposals, seamless logistics, and expert installation assistance.
Strategic Partnerships:
Collaborating with Hele Titanium Hydrogen means gaining a partner dedicated to the success of your hydrogen generation project, offering end-to-end support from design and planning to delivery and installation.
Client-Centric Solutions:
The company delivers customized hydrogen generation solutions for wholesalers, brand owners, manufacturers, suppliers, laboratories, and individual users, accommodating diverse scales and requirements.
Need more help?
We are here to assist you. We’d love to hear from you!
86-13857402537
86-13857402537
Get a Quote
Contact us today for a free quote from one of our sales engineers.
Key Applications of PEM Electrolyzers
PEM electrolyzers are engineered to deliver efficient, high-performance hydrogen production for a wide range of applications. Designed to meet the demands of various sectors, these electrolyzers ensure reliable, sustainable hydrogen generation to support both industrial and environmental goals.
Renewable Energy Integration
Ideal for pairing with renewable sources like solar and wind, enabling the efficient conversion of excess energy into green hydrogen for storage and use.
Hydrogen Production for Industrial Use
Perfect for large-scale production facilities, providing high-purity hydrogen for industrial processes, including fuel cells and chemical manufacturing.
Green Chemical Hydrogen / Storage
Essential for large-scale green chemical production, offering sustainable hydrogen generation and storage solutions for clean chemical processes.
Hydrogenation Stations
Designed for consistent hydrogen supply to hydrogenation processes in industries such as food production, refining, and specialty chemicals.
Common Questions
Most Popular Questions.
PEME water electrolysis hydrogen production.
Can be customized according to the needs of professional.
It is a new technology ofnational energy strategy and aworld-leading technology for hydrogen production. Byproton exchange membrane pure water, hydrogen gaswith a purity of up to 99.999% can be rapidly produced
A: Yes, we are a professional manufacturer and our engineers have wide experiences.
Yes, we welcome sample order to test and check quality. Mixedsamples are acceptable. Also accepted OEM/ODM service.
A: Yes, if you have other needs, you can contact us and we would try our best to help you.
A: We cooperated with DHL, UPS, Fedex, EMS, TNT and China Air Post etc. We would recommend to you according to the destination, the quantity and weight. You also can contact your appointed forwarder/agent to arrange shipment.
A: For most products, we provide 6 months warranty. We would give you new one accessories Free of Charge during the guaranty period, or to be negotiated until you are satisfied.
Custom Your PEM Electrolyzer with Easy!
No matter the specific PEM electrolyzer requirements you have, our vast expertise enables us to produce it for you. Notably, as we create our own raw materials, we have the advantage of delivering superior quality control and more competitive pricing compared to our worldwide competitors.
