PEM Water Electrolyzer System 10Nm³/h
PEM Electrolyzer CH-10Nm³/h
The CH-10Nm³/h PEM Water Electrolyzer System enables industrial-scale hydrogen generation with 99.999% purity, ideal for semiconductor manufacturing, renewable energy storage, and green fuel production. Featuring rapid response, 4.4 kWh/Nm³ efficiency, and 3.5 MPa output pressure, this scalable solution supports decarbonization goals while reducing operational costs. Designed for seamless integration with solar, wind, and microgrid systems.
The CH-10Nm³/h PEM Water Electrolyzer exemplifies advanced, scalable hydrogen production technology. It delivers high-purity hydrogen with excellent efficiency, pressure capability, and flexibility for integration into modern, sustainable energy systems. Its robust design and operational advantages make it a preferred choice for industries aiming to decarbonize and adopt green hydrogen solutions.
Pem Hydrogen Generator System 10Nm³/h
| CH-10Nm³/h PEM Hydrogen Production System | ||
| Parameter | Unit | Value |
|---|---|---|
| Gas production | Nm³/h | 15 |
| Hydrogen production | Nm³/h | 10 |
| Operating temperature | ℃ | 5-70 |
| Hydrogen purity | % | 99.999 |
| Dew point | ℃ | -74 |
| Water quality demand | / | ASTM D1193 Type I deionized water (>10MΩ·CM) |
| Maximum stress | Mpa | 3.5 |
| Supply voltage | V | 380 |
| Water consumption | L/h | 10 |
| Size | mm | 3000×1400×2100 |
| Direct current consumption | kW·h/Nm³H₂ | 4.4 |
| Load regulation range | % | 5-120 |
| Application area | / | Photovoltaic off-grid hydrogen production, wind hydrogen production, cogeneration, semiconductor, multi-energy complementary micro-network and other industrial hydrogen fields |

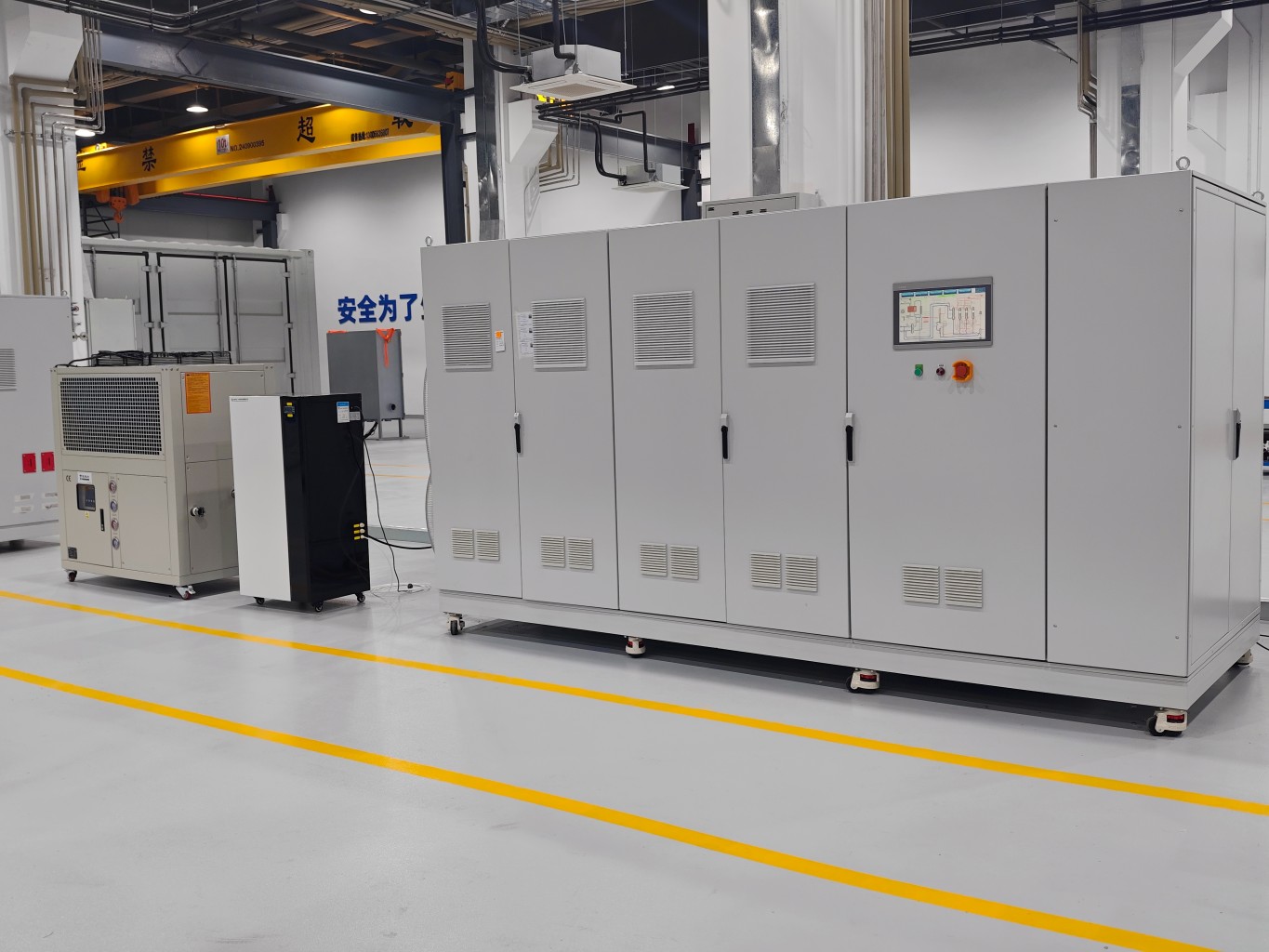

CH-10Nm³/h PEM Water Electrolyzer System
High-Efficiency Hydrogen Generation for Industrial Applications
Elevate your hydrogen production with the CH-10Nm³/h PEM Water Electrolyzer—engineered for reliability, efficiency, and seamless integration into modern industrial operations. As a leading solution in the field of green hydrogen technology, this system is designed to meet the rigorous demands of B2B clients across energy, manufacturing, and technology sectors.
Key Features & Advantages
High-Purity Hydrogen Output:
Delivers up to 10 Nm³/h of hydrogen at 99.999% purity, meeting the strictest industry standards for electronics, chemical processing, and renewable energy storage.Advanced PEM Technology:
Utilizes state-of-the-art Proton Exchange Membrane (PEM) technology for rapid response, high efficiency (4.4 kWh/Nm³ H₂), and safe, reliable operation.Robust Industrial Design:
Built for continuous operation with a compact footprint (3000×1400×2100 mm) and maximum pressure up to 3.5 MPa, supporting both centralized and distributed hydrogen supply.Flexible Integration:
Optimized for renewable energy sources—seamlessly connects with photovoltaic, wind, and cogeneration systems, making it ideal for off-grid and multi-energy microgrid applications.Low Operating Costs:
Efficient water consumption (10 L/h) and low maintenance requirements reduce total cost of ownership for industrial clients.
Why Choose the CH-10Nm³/h PEM Electrolyzer?
Brand Reliability:
Trusted by leading companies in hydrogen production, semiconductor manufacturing, and energy storage.Scalable & Customizable:
Modular design allows for easy scaling to meet growing hydrogen demands—future-proofing your investment.Compliance & Safety:
Meets international standards for water quality (ASTM D1193 Type I) and safety, ensuring uninterrupted, high-purity hydrogen supply.
Target Applications
Green hydrogen production for refueling stations
Renewable energy storage and grid balancing
Electronics and semiconductor manufacturing
Chemical and industrial gas supply
Optimize Your Hydrogen Supply Chain
The CH-10Nm³/h PEM Water Electrolyzer empowers your business to achieve sustainability targets, reduce carbon footprint, and secure a competitive edge in the evolving hydrogen economy. Contact us today to discover how our advanced PEM electrolyzer solutions can transform your industrial hydrogen operations.
Hele Titanium Hydrogen Company Profile
Expertise:
Hele Titanium Hydrogen is a leading PEM electrolyzer manufacturer in China, boasting over a decade of specialized experience in designing and producing advanced PEM electrolyzers tailored to meet the unique demands of diverse industries.
Service Scope:
The company offers end-to-end services, from design to large-scale production, ensuring clients receive high-quality, high-performance PEM electrolyzers that support their transition to sustainable energy solutions.
Customization Services:
Hele Titanium Hydrogen provides bespoke solutions, enabling adjustments to electrolyzer stack dimensions and capacity, optimization of operational parameters, selection of appropriate electrode materials and components, configuration of efficient cell structures, and additional system customization options to align with specific client requirements.
PEM Electrolyzer Product Overview
Capacity Range:
The company offers PEM electrolyzers in various capacities, including 0.01-1Nm³/h, 1-10Nm³/h, 10-50Nm³/h, 50-200Nm³/h, as well as compact models (2000-7000ml/min and 300-2000ml/min), catering to applications spanning small-scale laboratories to large industrial operations.
Applications:
These electrolyzers are widely deployed across sectors such as fuel cells, multi-energy hybrid microgrids, power plants, semiconductor manufacturing, hydrogen refueling stations, polysilicon production, chemical industries, optoelectronics, energy storage facilities, power absorption systems, and renewable hydrogen production.
PEM Electrolyzer Operating Principle & Advantages
Operating Principle:
PEM electrolyzers generate hydrogen and oxygen through water electrolysis. At the anode, an oxidation reaction produces oxygen, protons, and electrons; protons migrate via the proton exchange membrane to the cathode, where they combine with electrons to form hydrogen gas.
Advantages:
PEM electrolyzers excel in producing ultra-pure hydrogen, operating with high efficiency, and offering rapid response times. They are ideally suited for integration with renewable energy sources (e.g., wind, solar), advancing global decarbonization efforts and enabling the transition to a low-carbon future.
Key Considerations for Selecting PEM Electrolyzers
Hydrogen Production Requirements:
Define required hydrogen volume, purity, and pressure to select the appropriate electrolyzer model.Input Power Specifications:
Evaluate current and voltage requirements to ensure alignment with production scale and application needs.System Design & Configuration:
Assess critical components (e.g., proton exchange membrane, gas diffusion layer, catalyst layer) to guarantee system efficiency and durability.Manufacturer Reputation:
Partner with reputable manufacturers delivering reliable, high-quality electrolyzers and comprehensive after-sales support.Customization Options:
Inquire about tailor-made solutions to address specific operational demands.
Hele Titanium Hydrogen’s Commitment & Strengths
One-Stop Solutions:
Beyond premium PEM electrolyzers, Hele Titanium Hydrogen provides detailed product proposals, seamless logistics, and expert installation assistance.
Strategic Partnerships:
Collaborating with Hele Titanium Hydrogen means gaining a partner dedicated to the success of your hydrogen generation project, offering end-to-end support from design and planning to delivery and installation.
Client-Centric Solutions:
The company delivers customized hydrogen generation solutions for wholesalers, brand owners, manufacturers, suppliers, laboratories, and individual users, accommodating diverse scales and requirements.
Get a Quote
Contact us today for a free quote from one of our sales engineers.
Need more help?
We are here to assist you. We’d love to hear from you!
86-13857402537
86-13857402537
Key Applications of PEM Electrolyzers
PEM electrolyzers are engineered to deliver efficient, high-performance hydrogen production for a wide range of applications. Designed to meet the demands of various sectors, these electrolyzers ensure reliable, sustainable hydrogen generation to support both industrial and environmental goals.
Renewable Energy Integration
Ideal for pairing with renewable sources like solar and wind, enabling the efficient conversion of excess energy into green hydrogen for storage and use.
Hydrogen Production for Industrial Use
Perfect for large-scale production facilities, providing high-purity hydrogen for industrial processes, including fuel cells and chemical manufacturing.
Green Chemical Hydrogen / Storage
Essential for large-scale green chemical production, offering sustainable hydrogen generation and storage solutions for clean chemical processes.
Hydrogenation Stations
Designed for consistent hydrogen supply to hydrogenation processes in industries such as food production, refining, and specialty chemicals.
Common Questions
Most Popular Questions.
PEM waterelectrolysishydrogen production system.
Can be customized according to the needs of professional.
It is a new technology ofnational energy strategy and aworld-leading technology for hydrogen production. Byproton exchange membrane pure water, hydrogen gaswith a purity of up to 99.999% can be rapidly produced
A: Yes, we are a professional manufacturer and our engineers have wide experiences.
Yes, we welcome sample order to test and check quality. Mixedsamples are acceptable. Also accepted OEM/ODM service.
A: Yes, if you have other needs, you can contact us and we would try our best to help you.
A: We cooperated with DHL, UPS, Fedex, EMS, TNT and China Air Post etc. We would recommend to you according to the destination, the quantity and weight. You also can contact your appointed forwarder/agent to arrange shipment.
A: For most products, we provide 6 months warranty. We would give you new one accessories Free of Charge during the guaranty period, or to be negotiated until you are satisfied.
Custom Your PEM Electrolyzer with Easy!
No matter the specific PEM electrolyzer requirements you have, our vast expertise enables us to produce it for you. Notably, as we create our own raw materials, we have the advantage of delivering superior quality control and more competitive pricing compared to our worldwide competitors.
